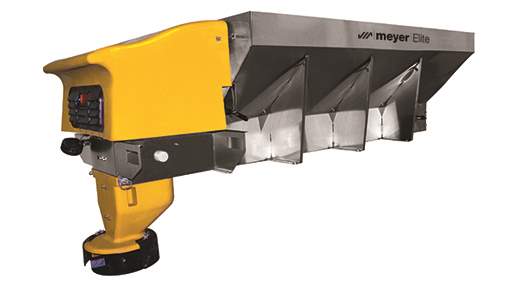

Elite Cab & Chassis Insert Spreader

High Capacity Hopper Designed for Highway Spreading

Meyer offers eight different configurations in our Elite Cab & Chassis insert spreader line-up.  All are built using fewer moving parts to keep you on the job spreading.  Hoppers are made of stainless steel and are available in 8' and 10' lengths with 3.5 and 4.5 cubic yard capacities.  Drive options include 10hp Brigg & Stratton gas, 11hp Honda gas, 12-volt dual electric or central hydraulics, so there's a model perfect for your municipalitiy's fleet of trucks.

    Performance

    Performance

    Spend Time on the Job, Not Maintaining Equipment

    Designed for contractor use, the Elite pickup insert spreader allows you to spend less time adjusting or cleaning and more time on the job.  It provides the best performance possible, every time you use it. Performance-enhancing components standard on the Meyer Elite insert spreader include:

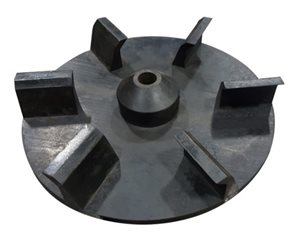

    Spinner Prevents Material Buildup

    The spinner assembly is constructed of maintenance-free poly for a long life while the 14” poly disc is designed to perform.  The coned center hub is better balanced and prevents material build up around the spinner shaft.  Interrupted directional flighting provides a more consistent spread pattern up to 30’.

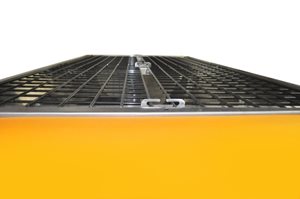

    Top Screens

    The carbon steel Drop-n-Loc top screens prevent large chunks of material from entering the hopper which can cause damage to the drag chain and reduce performance.  They feature three supports for added stability and are sectional for easier hopper access and safer removal.  The screen edges are recessed to prevent interference from added accessories and to protect the screens and clips from damage.

    Built with Safety in Mind

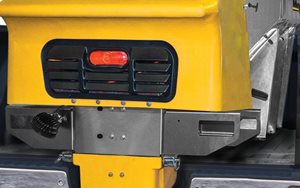

    Elite spreaders are CE certified. Safety features include a material top screen, enclosure for front bearing, drive chain guard, integrated fork-lift pockets, a work light, brake light and poly engine shroud.


    Reliability

    Reliability

    Competition Has Met Its Match

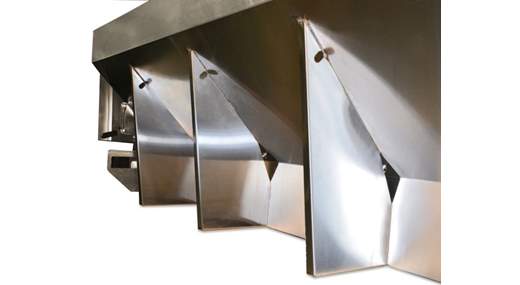

    Meyer's premium UTV insert spreader is built with more maintenance-free materials and parts to provide durability and to protect against damaging weather and chemicals. The no maintenance, newly designed light hopper features formed floor supports for more strength and stability.  Body jacks with integrated tie downs have standard 24” spacing making it easier to add liquid tanks.  Universal longitudinal design allows for the interchanging of all drives.

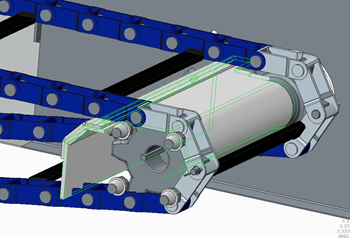

    Dual Chain Wipers

    A second chain wiper removes any residual material on the drag chain bar flights.

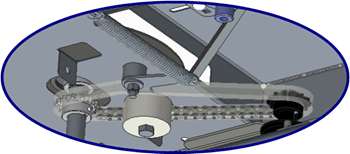

      Eliminate Frequent Adjustments

    Tensioner to the drive chain keeps constant tension on the spring eliminating frequent manual adjustments.



    10-Year Warranty on Poly Idler Assembly

    Elite Cab & Chassis insert spreaders come with a ten-year warranty on the maintenance-free poly idler.

    Ease of Use

    Ease of Use

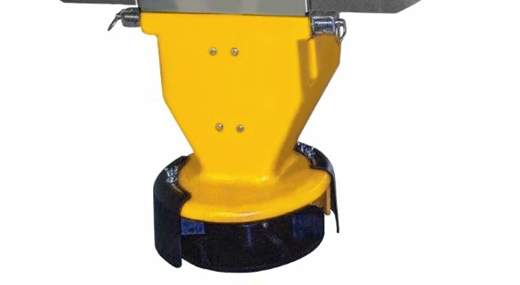

    Poly Spinner System Attaches/Detaches Easily

    The Elite UTV insert hopper spreader is built to be easy-to-use. The new lighter poly spinner with formed handles and pin connection makes attaching and detaching a breeze.  The spinner chute, available in four height options, has a spring-loaded shaft connector that keeps the spinner engaged.

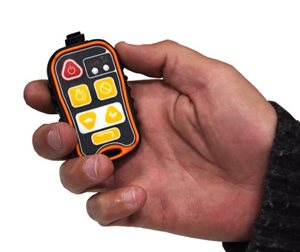

    Wireless Controller

    At the touch of a button, the easy-to-use wireless controller allows the engine speed to throttle up and choke as well as turn on and off.

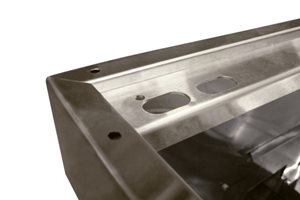

    Easy to Lift Hopper

    Corner lift points make the Elite hopper safer and easier to lift.

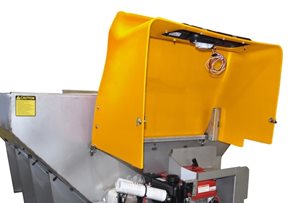

    Integrated Gas Springs Allow Easy Maintenance

    Gas engine Elite Spreader models come standard with gas springs. This allows the engine shroud to remain in the open position during refueling and maintenance.

    Specifications

    Get to know the Elite.

    Quick Facts:

    • Type: Insert Hopper Spreader

    • Vehicle: Cab & Chassis

    • Length: 8' and 10'

    • Capacity: 3.5 and 4.5 cubic yards

    • Materials: Salt, 50/50 salt-sand, sand

    • Construction: Stainless Steel

    • Part #: 67082 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 4.5 cu yd 3,4 cu m
      Max Capacity Weight: 1,200 lbs 544 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67084 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 4.5 cu yd 3,4 cu m
      Max Capacity Weight: 1,200 lbs 544 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67085 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 4.5 cu yd 3,4 cu m
      Max Capacity Weight: 1,200 lbs 544 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67083 Hopper Width: 70" 178 cm Hopper Depth: 120" 305 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 4.5 cu yd 3,4 cu m
      Max Capacity Weight: 1,200 lbs 544 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67066 Hopper Width: 70" 178 cm Hopper Depth: 96" 244 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 3.5 cu yd 2,7 cu m
      Max Capacity Weight: 1,100 lbs 499 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67068 Hopper Width: 70" 178 cm Hopper Depth: 96" 244 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 3.5 cu yd 2,7 cu m
      Max Capacity Weight: 1,100 lbs 499 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67069 Hopper Width: 70" 178 cm Hopper Depth: 96" 244 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 3.5 cu yd 2,7 cu m
      Max Capacity Weight: 1,100 lbs 499 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:
    • Part #: 67067 Hopper Width: 70" 178 cm Hopper Depth: 96" 244 cm Hopper Height: 46" 117 cm
      Total Height: 69.25" 176 cm Spread Width (min-max): 4' - 30' 1.22 m - 9.14 m Empty Weight: N/A Max Capacity Load: 3.5 cu yd 2,7 cu m
      Max Capacity Weight: 1,100 lbs 499 kg Spreading Material: Rock Salt, Sand, Salt/Sand Mix Warranty: 1 year Hopper Material: Stainless Steel
      Spinner Diameter: 14" 36 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:

    • Support

      Support

      Looking for more information on this spreader? See if our tools, programs and documents can help.

      Visit Our Elite Support Page

    • Accessories

      Accessories

      Have a Elite spreader or thinking about getting one? Make sure you have the right accessories to make it even better.

      See All Elite Accessories

    Purchase

    All the information you need to make a Meyer spreader yours is at your fingertips. Find a Meyer dealer, learn about financing options and purchase online. It’s never been so easy to get your hands on the products more snow removal professionals choose over the competition.
