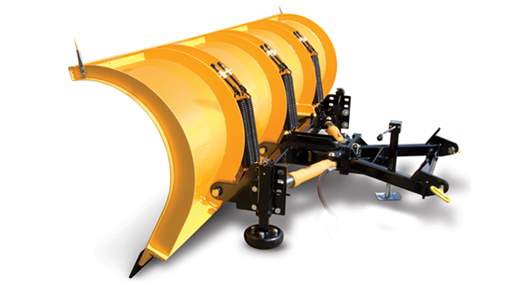

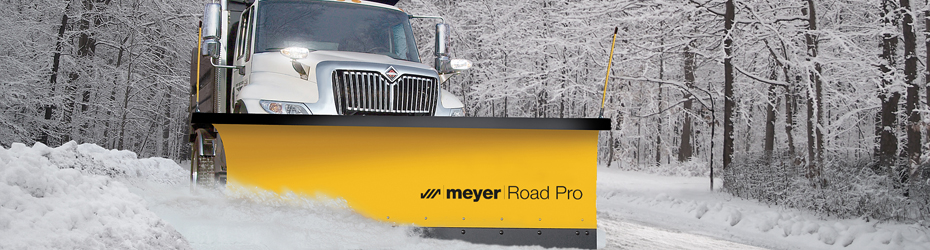

Road Pro 36-Series

Road Pro 36-Series

Knock Snow into the Next Zip Code

The Meyer® Road Pro™ 36-Series is the biggest and toughest snow plow in the Meyer line, the perfect match for 26,000 - 33,000 GVW trucks. It leaves only the cleanest surface behind with the industry's best snow-rolling action. Road Pros are available in 9-foot, 10-foot or 11-foot full-trip lengths or a 10-foot bottom-trip.

    Performance

    Performance

    Built To Take On City Streets And Byways

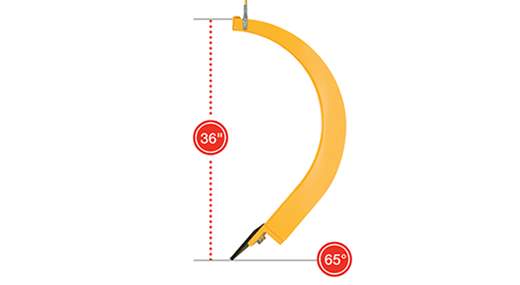

    Road Pro’s aggressive 65-degree attack angle, 36-inch moldboard height with 15" radial overhang throws snow higher and farther. Its unique pivot design allows it to automatically oscillate five degrees on each side to follow the contour of the road so more snow can be cleared in less time.

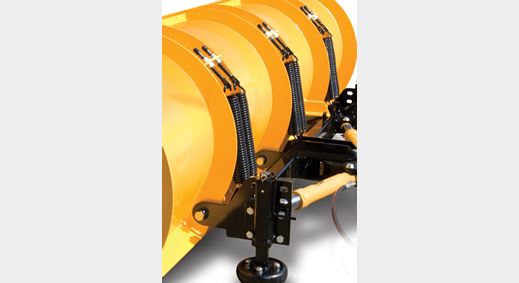

    Massive Adjustable Springs

    Unlike competitive models, Meyer’s Road Pro 36-Series includes trip springs that can be adjusted in the field and require no special tools. In addition, a pivot bolt allows the Road Pro-36 moldboard to operate in either a fixed-position or oscillate five degrees on each side to follow the contour of the road so more snow can be cleared in less time.

    Massive Adjustable Springs

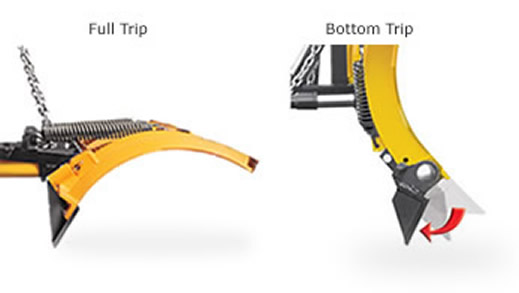

    Available in Full-Trip or Bottom-Trip

    Meyer understands that snow conditions vary, that's why the Road Pro 36-Series is available in full-trip or bottom-trip action. All Meyer bottom-trip moldboards are available with a reversible cutting edge for longer wear-life of your moldboard.

    Available in Full-Trip or Bottom-Trip

           Click to see full-trip in action.                          Click to see trip-edge in action.

    Dura-Slick Paint with Teflon®

    All Meyer carbon steel moldboards are painted with Meyer Dura-Slick™ Paint. This automotive-style paint with Teflon® is baked on to the steel for durability and better snow-rolling action. It's the reason why Meyer plows throw snow farther and move it faster than the competition.

    Dura-Slick Paint with Teflon

    Reliability

    Reliability

    Weighing in at more than ¾’s of a ton, Road Pro 36-Series moldboards are constructed using 10-gauge steel or 3/8" polyethylene, and are backed with an industry leading 5-year warranty. All moldboards feature six vertical ribs and a massive black iron push frame to provide the strength needed to clean city streets and small rural neighborhoods.

    Slot and Tab Construction

    Meyer couldn't offer the industry's best warranty on our plows if we didn't build them using slot and tab construction. This method of construction makes for a stronger, more precise fitting plow. Laser cut steel components are assembled using robotic welders that never tire and never make a mistake. It's why every plow comes off the line ready to provide years of trouble-free service.

    Slot and Tab Construction

    Pre-drilled Deflector Holes

    Meyer Road Pro moldboards are manufactured with pre-drilled holes, which makes it easy to add a snow deflector. This means you save time when adding this important safety feature that prevents snow from impairing your view through the windshield. Since they are pre-drilled at the factory, the holes are sealed with Dura-Slick paint to help prevent rust.

    Pre-drilled Deflector Holes

    Reliable and Responsive Operation

    Central hydraulics allows the plow to be plumbed directly to the vehicle’s hydraulic system making it easy to install and maintain.  The Meyer E-70 out-front hydraulic system allows you to add a plow to vehicles that do not have central hydraulics.

    5-Year America's Best Warranty

    Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  The competition can’t beat that.

    5 Year Warrenty

    Ease of Use

    Ease of Use

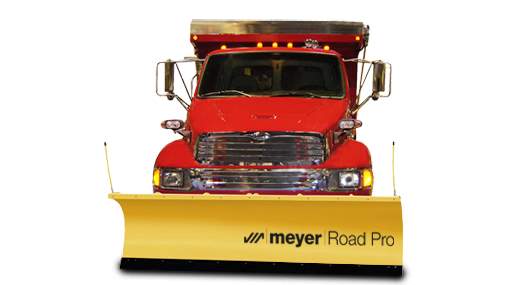

    Turn Any Medium-duty Truck Into A Plow Truck

    The Road Pro™-36 Series uses a universal mounting system that allows you to easily take the plow on or off the vehicle. This flexible mounting system will work on just about any medium-duty truck. Once the universal attachment brackets are installed, the Road Pro 36-Series can be powered with the truck's central hydraulic system or via Meyer's E-70 out-front hydraulic system.

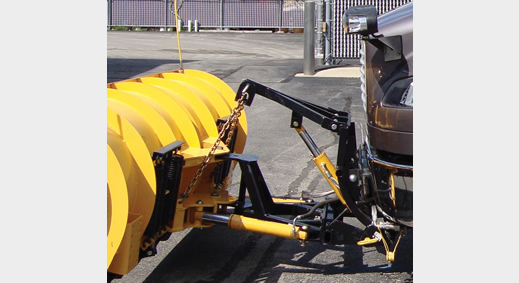

    Trucks with Central Hydraulics

    Most medium-duty trucks come with central hydraulics. The Meyer industrial-duty central hydraulic system allows the plow to be plumbed directly to the vehicle's hydraulic system. Central hydraulics provide quick operation, are easy to install and maintain, and don't require the purchase of independent hydraulics.

    Trucks with Central Hydraulics

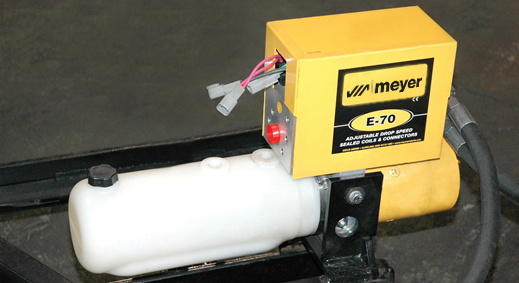

    Trucks without Central Hydraulics

    The Meyer E70 Hydraulic (12V) system is the perfect solution for contractors who want to add a plow to vehicles that do not have central hydraulics. The system comes with all components to installs the hydraulic system on the lift frame and features a large “see-through” reservoir for easy filling. The unit comes complete with a pistol grip controller, electrical harnessing, two municipal-duty angling rams and a lift ram cylinder.

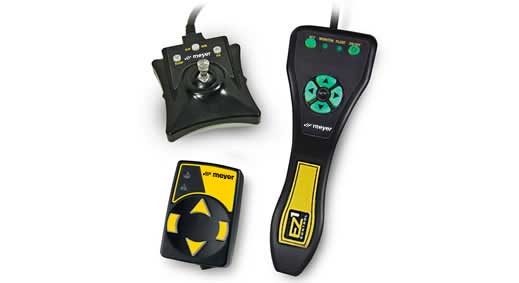

    Hands-Free Plowing - A Meyer Exclusive

    Meyer knows controller preferences vary by driver, that’s why we offer three options. Choose the controller that’s right for you: EZ-1 pistol grip, joystick or touch pad.

    Both the Meyer EZ-1 pistol grip controller and joystick controller feature diagnostics and a Hands-Free Plowing (HFP) mode. When activated, HFP uses the shift lever to control the up/down movement of the blade. The EZ-1 pistol grip controller also features double-click technology.  Simply double-click a button, and the moldboard will automatically move in that direction without having to keep your finger on the button.  The touchpad controller features backlit buttons, easy-to-use functionality and diagnostics.

    Hands-Free Plowing

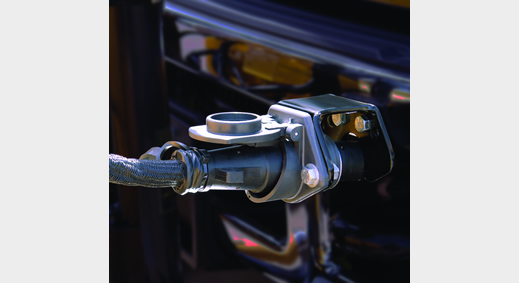

    One-Piece Plug (Patented)

    Unlike competitors who have up to three plugs, the Meyer EZ-Mount Plus system comes with a one-piece patented plug to connect/disconnect the plow from the vehicle. No more fumbling in the middle of the night trying to figure out which plug goes where. The one-piece plug gets you back in the cab faster and easier.

    One-Piece Plug

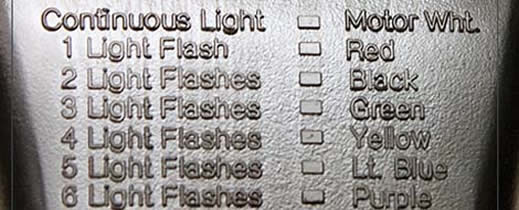

    System Diagnostics

    When you're out plowing, issues arise. Meyer makes it easy to get you back on the road using our system diagnostics found on the back of our pistol grip controllers. Just match the controller's flashing light sequence with the chart on the back of the controller to isolate the issue. Not only does this reduce your downtime, it gets you back doing what you do best – plowing snow.

    System Diagnostics

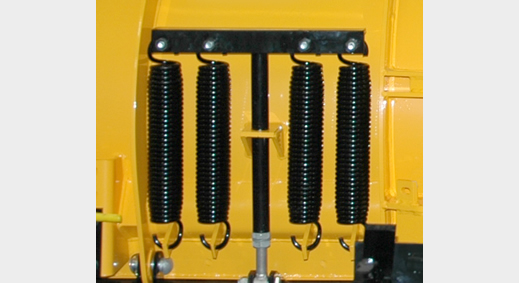

    Field Adjustable Trip Springs

    While out plowing, contractors often need to make adjustments to their plow, and they don't want to go back to the shop to do it. That is why Meyer makes their plows with field adjustable trip springs. This allows more time to plow and less time back at the shop.

    Field Adjustable Trip Springs

    Specifications

    Get to know the Road Pro 36-Series plow.



    Quick Facts:

    • Type: Full-trip or Bottom-Trip

    • Vehicle: 26,000 - 33,000 GVW municipal trucks

    • Construction: Steel or Polyethylene

    • Part #: 09437 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 36" 91 cm
      Moldboard Gauge: 7 ga 4,6 mm Vertical Ribs: 8 Plow Trip Springs: 6 Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 93" 236 cm Angling Rams: 2-1/2" x 11-1/2" 6,35 cm x N/A Weight Complete: 1562 lbs 709 kg
    • Part #: 09438 Blade Type: Full-Trip Moldboard Length: 10' 305 cm Moldboard Height: 36" 91 cm
      Moldboard Gauge: 7 ga 4,6 mm Vertical Ribs: 8 Plow Trip Springs: 6 Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 104" 264 cm Angling Rams: 2-1/2" x 11-1/2" 6,35 cm x N/A Weight Complete: 1610 lbs 730 kg
    • Part #: 84200 Blade Type: Bottom-Trip Moldboard Length: 10' 305 cm Moldboard Height: 36" 91 cm
      Moldboard Gauge: 7 ga 4,6 mm Vertical Ribs: 8 Plow Trip Springs: 8 Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 104" 264 cm Angling Rams: 2-1/2" x 11-1/2" 6,35 cm x N/A Weight Complete: 1850 lbs 839 kg
    • Part #: 09439 Blade Type: Full-Trip Moldboard Length: 11' 335 cm Moldboard Height: 36" 91 cm
      Moldboard Gauge: 7 ga 4,6 mm Vertical Ribs: 8 Plow Trip Springs: 6 Cutting Edge: 3/4" x 6" 1,90 cm X 15,24 cm
      Avg Width at Full Angle: 114" 290 cm Angling Rams: 2-1/2" x 11-1/2" 6,35 cm x N/A Weight Complete: 1660 lbs 753 kg
